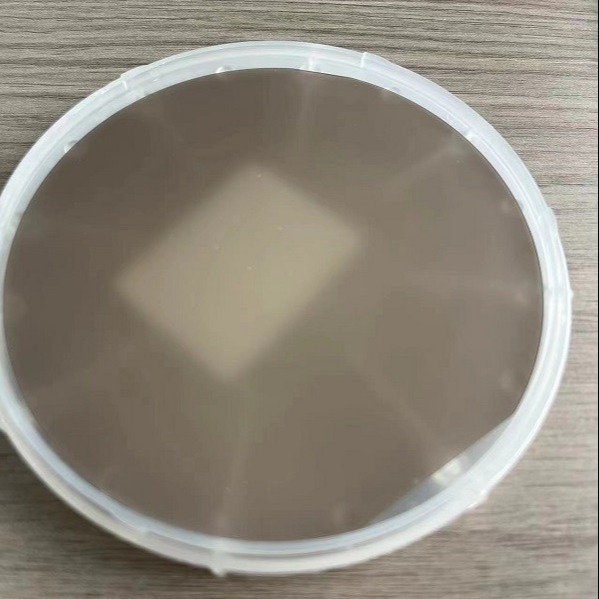

    2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications

    Ask Lasest Price
    Brand Name : CSIMC
    Model Number : Lithium Tantalate (LiTaO3)
    Certification : ISO:9001, ISO:14001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pcs/Month
    Delivery Time : 1-4 weeks
    • Product Details
    • Company Profile

    2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications

    2" 3" 4" 6" Lithium Tantalate Wafers The Ultimate Solution for Piezoelectric Applications


    the precision-engineered heart of advanced technology. These wafers, crafted from the exceptional material of Lithium Tantalate, offer unparalleled performance in a wide range of applications.

    Known for their exceptional piezoelectric, pyroelectric, and optical properties, Lithium Tantalate Wafers are the go-to choice for high-frequency electronics, optical modulators, and sensors. Their stability and reliability ensure consistent performance, even under extreme conditions.

    Ideal for industries seeking cutting-edge solutions, these wafers enable the development of innovative products that push the boundaries of what's possible. From telecommunications to medical devices, Lithium Tantalate Wafers are the key to unlocking new possibilities.

    Experience the power of precision and performance with Lithium Tantalate Wafers. Invest in the future of technology – choose Lithium Tantalate Wafers today.


    2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications


    Diameter

    76.2±0.2mm

    100±0.2mm

    150±0.2mm

    Primary Flat

    22±1mm

    32±1mm

    47.5mm, 57.5mm, Notch

    Orientation

    36°Y, 42°Y, X-112°Y, Y, Z

    Thickness

    0.07mm~1.0mm

    0.1mm~1.0mm

    0.35mm~1.0mm

    Surface finish

    Single / Double side polish / Double side lapped

    TTV

    < 1~5µm

    BOW

    ± (20µm ~40um )

    Warp

    <= 20µm ~ 50µm

    LTV (5mmx5mm)

    <1.5 um

    PLTV(<0.5um)

    ≥98% (5mm*5mm) with 2mm edge excluded

    Polished side Ra

    Roughness Ra<=5A

    Back Side Criteria

    Roughness Ra:0.5-1.0µm, GC#1000

    Scratch & Dig (S/D)

    20/10, 40/20, 60/40

    Edge Profile

    Compl't with SEMI M1.2@with GC800# .regular at C typed

    Cracks, saw marks, stains

    None


    Crystal Structure

    Trigonal, Space group R3c, Point group 3m

    Cell Parameters

    a=5.154Å, c=13.781Å

    Melting Point

    1650℃

    Curie Temperature

    607℃

    Mohs Hardness

    5.5

    Density

    7.46g/cm3

    Dielectric Constants

    ε11/ε0:51.7

    ε33/ε0:44.5


    2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications


    2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications


    FAQs:


    1. Q: What are the products you mainly work on?

    A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.


    1. Q: Can you accept product customization?

    A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.


    1. Q: Can you deliver the goods via our courier agent?

    A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.


    1. Q: How can you guarantee we get what we want safely?

    A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.


    Acceptance Check

    2" 3" 4" 6" Lithium Tantalate Wafers Ultimate Solution For Piezoelectric Applications
