Hangzhou Freqcontrol Electronic Technology Ltd. We Grow Crystal. We Fabricate Wafer. We are Piezoelectric Specialist.
4 Years
| Ask Lasest Price | |
| Brand Name : | BonTek |
| Model Number : | Lithium Niobate (LiNbO3) |
| Certification : | ISO:9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 pieces/Month |
| Delivery Time : | 1-4 weeks |

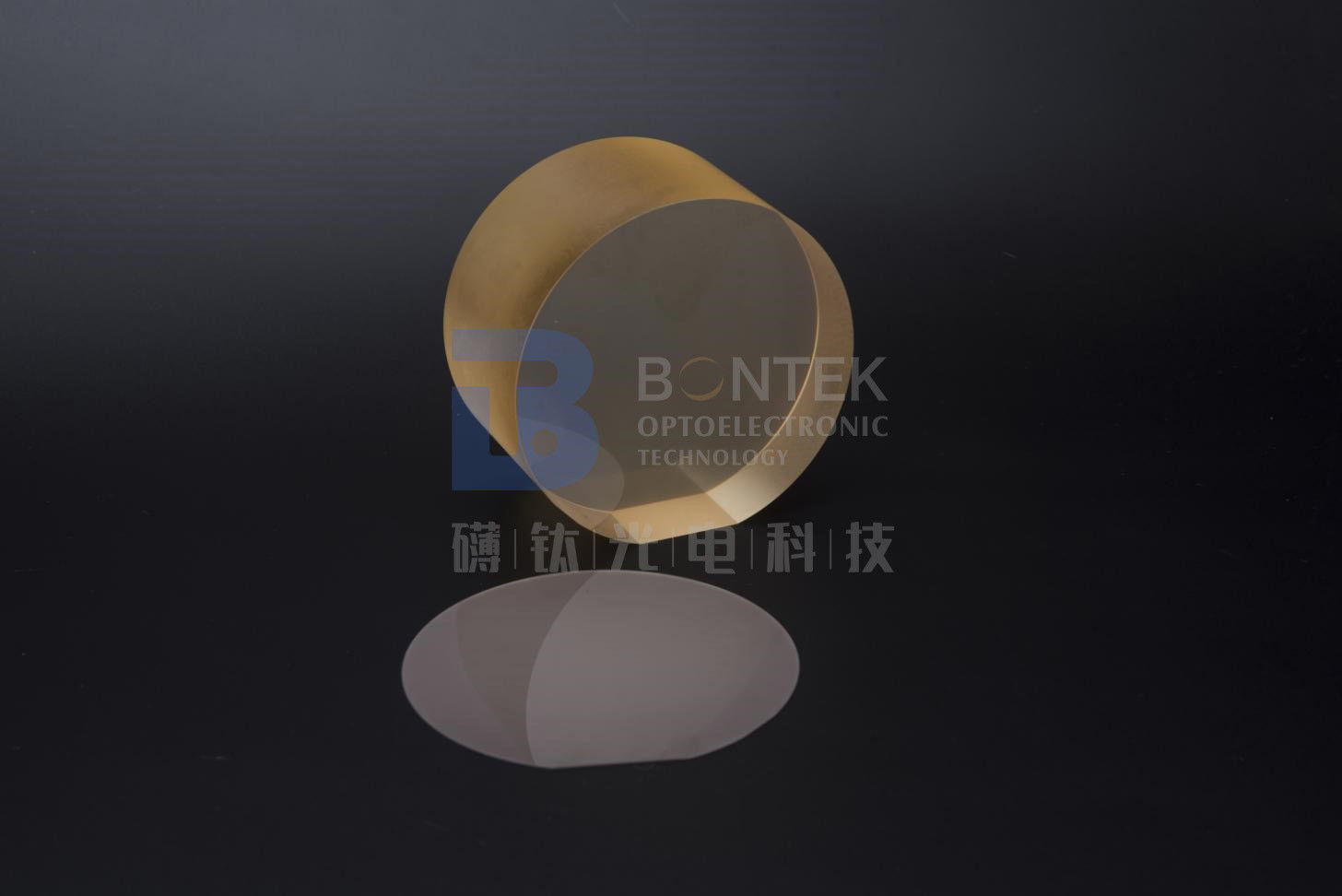

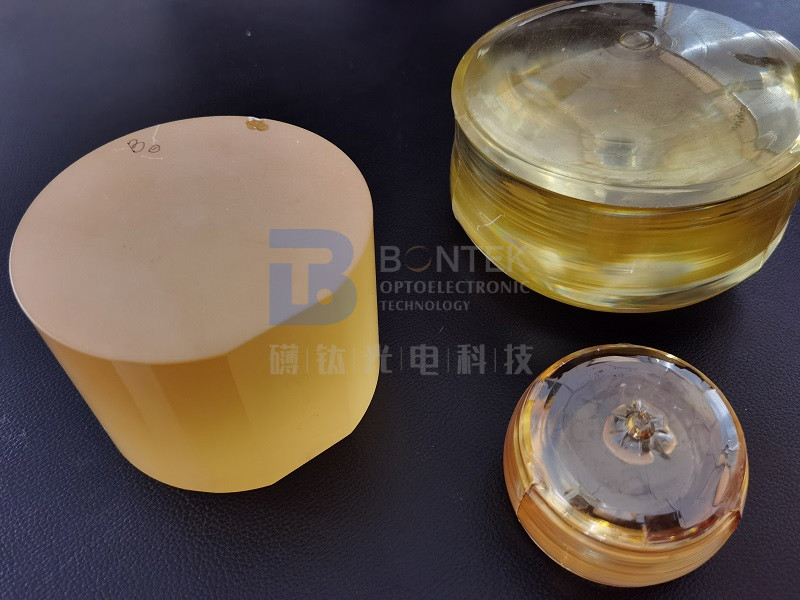

Lithium Niobate has good nonlinear optical properties and can be used as optical waveguide material, or to produce medium and low frequency SAW filter, high power high temperature resistant ultrasonic transducer, etc. Lithium niobate doping is now widely used, such as Mg:LN, Nd:Mg:LN, Fe:LN.
Lithium Tantalate has good piezoelectric, ferroelectric, acousto-optic and electro-optic effects. It is widely used in resonators, filters, transducers, as well as high-frequency surface acoustic wave devices
Material Characteristics
| Material | 3" 4" 6" 8" LN wafer Saw/Optical grade | 3" 4" 6" LT wafer Saw/Optical grade |
| Orientation | X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized | X112°/Y28°/Y36°/Y42°/YZ or Customized |
| Curie Temp | 1142°C±3°C | 605°C±3°C |
| Doped with | Zn, MgO single or double doped available | Fe |
| Single Domain | Completed Polarization/Reducted | |
Processing Capacity
| Surface finish | Single or double side polish (DSL/SSP/DSP available) | |
| Thickness | 0.18/0.25/0.35/0.50/1.00 + mm | 0.25/0.35/0.50/1.00+mm |
| TTV | < 1~5µm | |
| BOW | ± (25µm ~40um ) | |
| Warp | <= 35µm | |
| LTV (5mmx5mm) | <1.5 um | |
| PLTV(<0.5um) | ≥98% (5mm*5mm) with 2mm edge excluded | |
| Edge | Compl't with SEMI M1.2@with GC800# .regular at C typed | |
| Orientation flats | available, per request | |
| Polished side Ra | Roughness Ra<=5A | |
| Back Side Criteria | Roughness Ra:0.5-1.0µm GC#1000 | |
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 | |
| Cracks, saw marks, stains | None | |
Acceptance Check

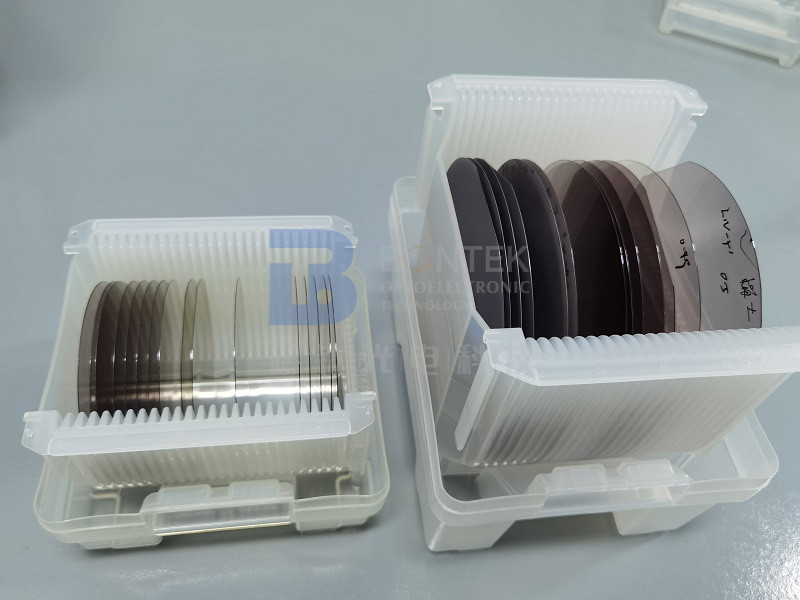

1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
|
|
