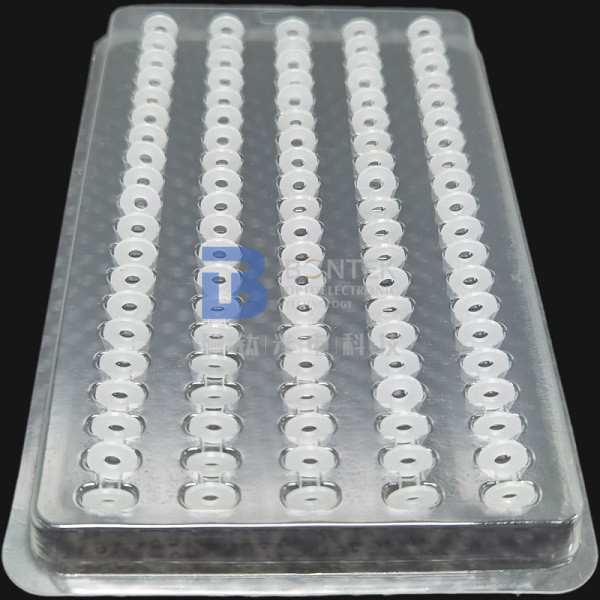

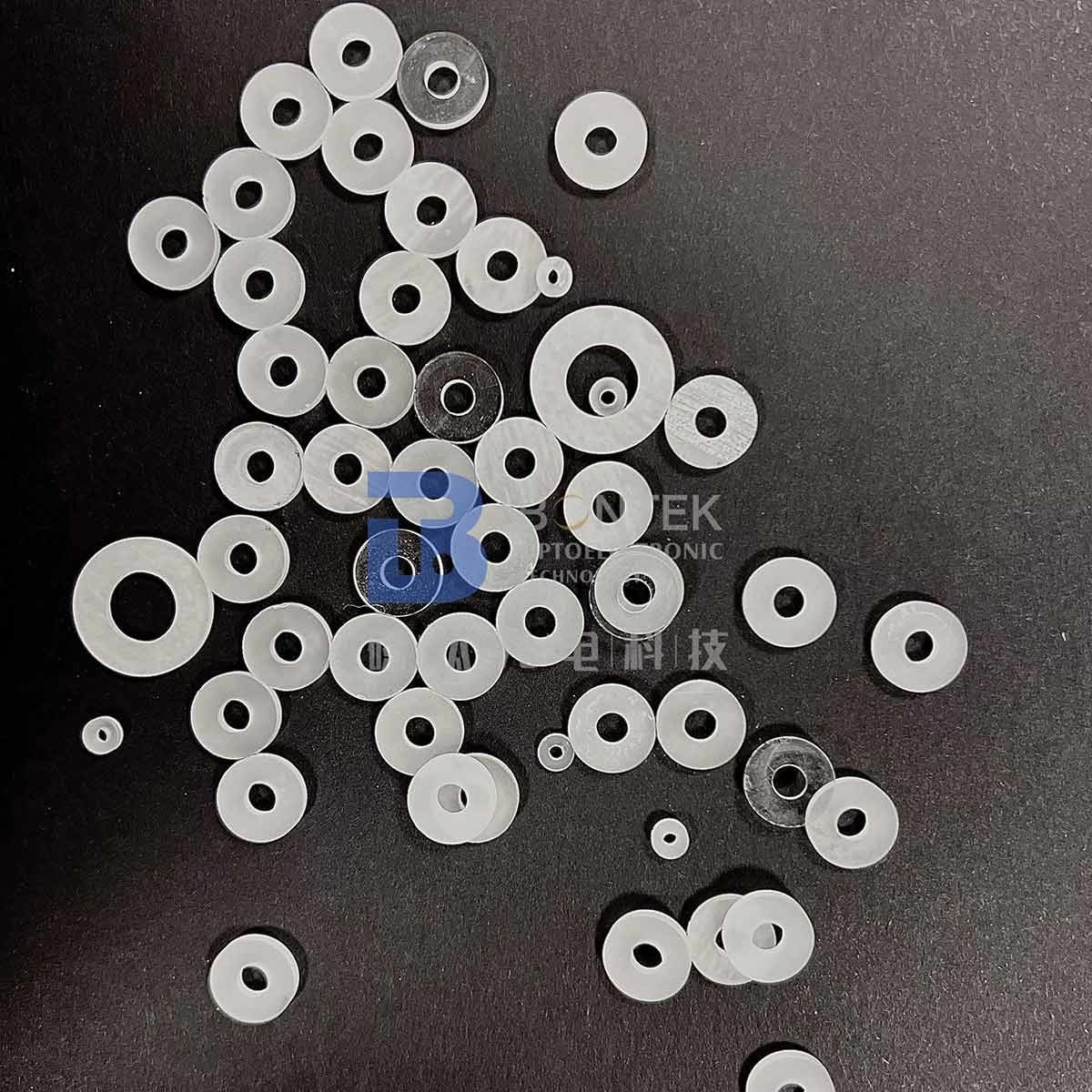

BonTek X Cut Quartz Ring For Pressure Sensing Y Cut For Thickness Shear

A piezoelectric quartz ring is a specialized ring made from a single crystal of quartz that exhibits the piezoelectric effect. The piezoelectric effect refers to the ability of certain materials, including quartz, to generate an electric charge when subjected to mechanical stress or pressure.

Piezoelectric Effect: The quartz crystal used in the ring is carefully cut and oriented to maximize its piezoelectric response. When mechanical stress or pressure is applied to the crystal, it generates an electric charge across its surface. This effect is reversible, meaning that an applied electric field can also cause the crystal to deform or vibrate.

Applications: Piezoelectric quartz rings have diverse applications due to their ability to convert mechanical energy into electrical energy and vice versa. Some common applications include:

• Sensing and Measurement: Piezoelectric quartz rings can be used as sensors to measure various physical quantities such as force, pressure, acceleration, or vibration.
• Actuators: These rings can be utilized as actuators to generate precise and controlled mechanical movements in devices like inkjet printers, ultrasonic cleaners, or precision positioning systems.
• Frequency Control: Quartz rings are widely used in the manufacturing of quartz crystal oscillators, which are critical components in electronic devices for generating stable and accurate frequencies.

Size and Shape: Piezoelectric quartz rings can vary in size and shape depending on the specific application requirements. They are typically designed to be compact and can be integrated into various electronic devices.

Performance and Stability: Piezoelectric quartz rings offer excellent stability and precision in their electrical and mechanical response. They exhibit low hysteresis and high linearity, making them suitable for applications that demand accurate and reliable performance.

FAQs:

1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.

2. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.

1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.

Acceptance Check

Founded in 1999, Hangzhou Freqcontrol Electronic Technology Ltd. is a China leading manufacturer of piezoelectric crystal wafers, substrates, components and single crystal growth. We, known as the "CQT Group" in global market, headquartered in Hangzhou, China, empowered by its manufacturing sites in Shanghai, Jiaxing and Deqin etc.

Our products are mainly used in RF Telecom, Semiconductor, Biotech, Optical engineering and frequency control industries. The monthly production capacity: 500K single quartz blanks (SC, AT, IT, FC, etc.), 20K quartz wafers (AT, ST, X, Z, etc.), 10K LiNbO3 wafers (3~8 inch), 10K glass wafers (Fused silica, Borofloat33, Corning, etc.), 8K LiTaO3 wafers (3~6 inch), and 100K filters/oscillators (VCXO, TCXO).

Our company vision is to be a reliable primary Microelectronic substrates supplier in today's world.

The CQT Group consists of five major plants with total floor area over 10,000 m². Our production machines include crystal growth furnace, wire saw, X-ray orientation, grinding machine, polishing machine, chamfering machine, CNC, REDOX chambers etc. Inspection equipment include Flatmaster 200, AOI, profilometer, optical imager, X-ray inspector etc. We are also equipped with Class 100 and 1000 clean rooms.

The CQT group is primarily known as the expert of hexagonal crystals, We master the manufacturing process of single & doubly rotated quartz blanks, and we can provide quartz of any orientation cut whether given by IRE , Miller index, Euler angle or conventional sign.

In addition to our leading quartz blank manufacturing capabilities, the last decade sees our major technological breakthroughs. We overcome the 3~6 inch ultra-thin wafer mass production barrier, obtained the reduction technology of black LiNbO3 & LiTaO3 wafers, and achieved 8 inch LiNbO3 wafer mass production successfully.

Competitive Advantages

1. Reliable partner: We are in this business for over 30 years, served over 200 customers in 20+ countries.
2. Complete production line: We do crystal orientation, wire cut, grinding, polishing, etching, flat/notch, surface inspecting, x-ray detecting etc. all in house!
3. State-of-the-art cleanroom: We have 3 Class1000 clean room, 1 Class100 work desk, complete wafer cleaning & drying process.
4. Efficient customer service: Prompt RFQ response & Order confirmation in 24 hrs, customization lead time in 4 weeks.
